◆ Equipment
◇ With the wide perimeter surfaces for
sealing,the unit frame is also the installation sub frame.

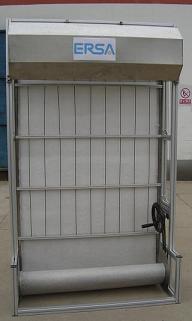

◇ The filter cassettes: one cassette
filled with new G3/G4 filter media which unwinds through the
framework. The second cassette takes up the used media.
◇ Filter supporting rods on the
upstream and downstream sides, as well as lateral filter roll
guides.
◇ Actuator control unit
with differential pressure control system and end of roll switch,
electrical wiring, diaphragm, or pressure transducer.
◇ The differential pressure control
system considers automatically all data at the point of installation
on the automatic roll filter,such as differential pressure across
the filter,dust concentrations, quantity of dust collected,
operating time, and volume flow rate.
◆ Material
◇
Rigid frame construction made of galvanised sheet steel,aluminum
alloy or aluminum alloy.
◆ Installation
and maintenance
◇ Easy installation due to a few,
mainly factory installed subassemblies.
◇ Easy filter change due to CHF
cassette system. |
|
 |
◆ Unit
Size
◇
Height(mm)：1500、1800、2100、2400、
2700、3000、3300、3600、4000、4500、5000
◇
Width(mm)：900、1000、1200、1500、
1800、2000、2100
◇
Air volume(m3/h)：4000-250000
◇
Depth(mm)：500-650
◆
Specification
◇
Arrestance effi：G3/G4(EN779)
◇ Final resistance:200-300 Pa
◇
Power consumption:100W
◇ Voltage 110/220/380/400 V, 50/60Hz
◆
Controller
Type
◇
CHF-Ⅰ
◇
CHF-Ⅱ
◇
CHF-Ⅲ |
